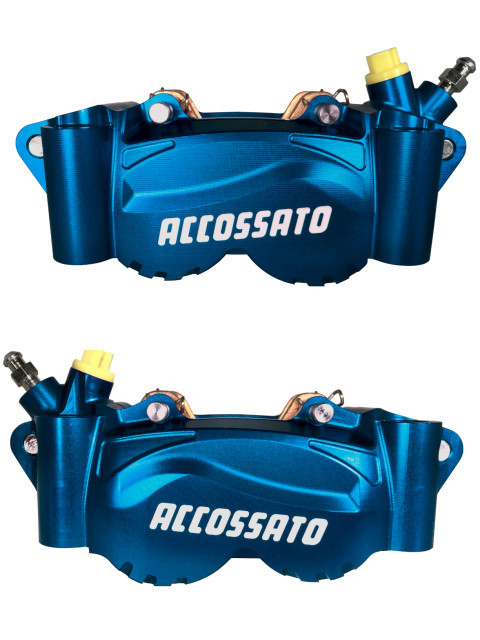

Radial Billet 2-piece Caliper

• Distance: 100 mm
• Piston in aluminium.
• Pads: 2 per caliper - code AGPA96 included  -many compounds available

Technical Specification:

• Manufacturing: cnc-made
• Distance: 100 mm
• Off-set: 30 mm
• Pistons: 2 pistons in aluminium - diameter 34mm and 38 mm
• Dust seal: yes
• Pads: 2 pads code AGPA96 included

Compounds:

- SINTERED for guarantee a high and costant grip level at high and low temperatures, giving a good grip on wet ground or
- ZXC a pottery compound ideal for racing use.

Features:

The new brake radial caliper, composed by 2 pieces and billet made, enriches the Accossato calipers range.
Caliper is designing with the most advanced technology, using the best materials on the market
A clear example is given by the structure of the calipers CNC-worked with 5 axes. The shape of the calipers
has been realised with the support of CAD research in order to obtain the lightest weight, the best rigidity of
the body and the best heat loss capacity throughout a special treatment in hard oxidation.
During the machining, the body of the caliper is 100% controlled by the three-dimensional lab machines.
The reduced dimensions allow mounting versatility and disinguish it from the other caliper of the range.

4 Reasons why you should choose an Accossato brake caliper:

1) Aesthetics: we take care of every single aesthetic detail of the Accossato radial caliper.
2) Range Available: A wide range of different models, colours and distances to choose from.
3) “Made in Italy” quality: all radial brake calipers are completely made in Italy. Every single part is
designed to deliver an improved braking performance.
4) Controls: we always control and test all radial calipers before mount and introduce them in the
market.

Warranty and Maintenance:

Accossato brake calipers are covered by a 24-month warranty starting from the date of invoice. Without these documents the warranty won’t be valid.
Accossato radial brake caliper is unique: indeed, it has a serial number, it is identifiable and different from
the other radial calipers. The removal of the serial number will invalid warranty and maintenance.
Maintenance on the Accossato caliper is carried out within a working week from the arrival of the radial
caliper.

Maintenance includes:

- Visual external inspection of the product
- Dismantling of the parts of the caliper
- Visual microscope inspection of all the components of the caliper
- Visual inspection inside the body of the caliper
- Replacement of the seal dusts
- Assembly of all the parts
- Static test of the caliper
- Dynamic test of the caliper

The replaced parts are disposed and from the maintenance, the caliper acquires a 12-month warranty as
stated by invoice. A further (second) maintenance will not extent the 12-month warranty of the product.
The maintenance will not include replacement of other non-mentioned external parts.
In case of falling, the maintenance is carried out only if the caliper can be fixed and come back to its original
status, like a brand-new part.
